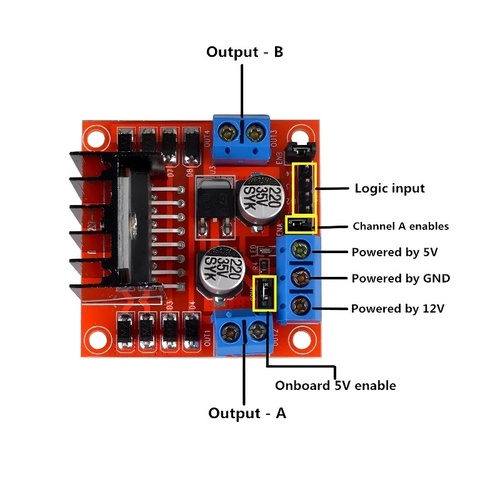

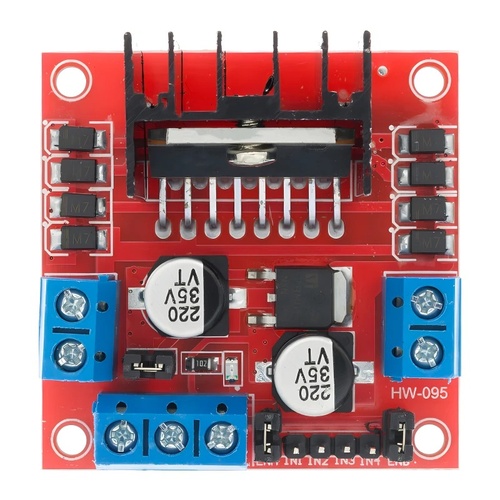

The L298N Dual H-Bridge Motor Driver Module is a powerful and reliable driver board designed for controlling DC motors and stepper motors in robotics, smart car projects, automation, and DIY electronics. Built with the L298N chip, this module provides up to 2A per channel with excellent heat dissipation and strong anti-interference performance.

It supports a wide input voltage range (5V–35V) and includes an onboard 5V regulator, making it compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers. With built-in filter capacitors and protection diodes, it ensures stability and long-term durability.

✅ Features & Specifications:

Main Chip: L298N

Work Mode: Dual H-Bridge Drive

Logic Voltage: 5V

Drive Voltage: 5V – 35V (Recommended up to 24V)

Logic Current: 0mA – 36mA

Driving Current: Max 2A per channel

Max Power: 25W

Board Size: 43 x 43 x 27 mm

Weight: 30g

Protection: Large capacitor filter + diode protection

Applications: Smart car, stepper motor control, Arduino projects, Peltier modules, DIY robotics

📦 Package Includes:

1 x L298N Motor Driver Module
